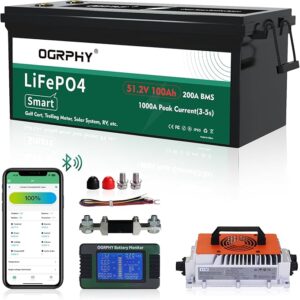

OGRPHY 48V Lithium Golf Cart Battery: In-Depth Review

If you’re in the market for a powerful, long-lasting, and smartly engineered battery upgrade for your golf cart or off-grid setup, the OGRPHY 48V 100Ah Lithium Golf Cart Battery deserves serious consideration. Designed with cutting-edge lithium-phosphate technology, an intelligent 200A BMS, and both mobile and LCD monitoring options, this battery promises to deliver outstanding performance, safety, and convenience. In this detailed review, we’ll explore its real-world capabilities, installation ease, and long-term value to help you decide if it’s the right fit for your needs.

Key Specifications

Feature	Details
Brand	OGRPHY
Battery Chemistry	LiFePO₄ (Lithium Iron Phosphate)
Voltage	48 Volts
Capacity	100 Amp Hours (Ah)
Energy Output	5.12kWh
Peak Power Output	10.24kW (1000A peak, short burst)
Continuous Discharge	200A
BMS	Smart 200A with Bluetooth & LCD Monitor
Charger Included	58.4V 18A Onboard LiFePO₄ Charger
Weight Reduction	~300 lbs less than lead-acid equivalents
Expected Lifespan	10 Years or 5000+ Cycles
Use Cases	Golf Carts, Solar Systems, Trolling Motors, Marine, RVs

Build Quality & Safety Features

Grade A Cells and Construction

OGRPHY uses UL-certified Grade A lithium-phosphate cells, ensuring both durability and energy consistency. The outer casing is rugged and water-resistant, suitable for under-seat mounting in golf carts, RVs, or solar banks.

Built-in 200A BMS with Multi-Layered Protection

The integrated Battery Management System (BMS) is a game-changer. It doesn’t just prevent overcharging or over-discharging—it also guards against:

• Overcurrent and short circuits
• Low and high temperature extremes
• Voltage fluctuations
• Cell balancing issues

This translates into safer operation and extended battery life, especially under high-drain usage like rapid acceleration in golf carts or surge draws in RV systems.

Performance in Golf Carts

Real-World Driving Range

The battery delivers up to 30 miles of range on a single charge with a standard 3kW golf motor. This is more than sufficient for 18 holes or even four full rounds, as confirmed by user feedback.

Golf Motor Size	Approx. Range
3kW	30 miles
5kW	~20–25 miles
8kW	~15–20 miles

For recreational golfers or fleet carts at golf courses, the range is solid. Plus, because the battery supports a high discharge current of 200A continuous, it easily handles more powerful motors up to 8kW, making it viable even for performance-modified carts.

Acceleration & Speed

Users report noticeable improvements in acceleration and top speed compared to lead-acid setups. This is due to:

• Higher sustained voltage across the discharge cycle
• Lower internal resistance
• Significant weight reduction (~300 lbs)

Your cart will feel more responsive, especially on inclines or rough terrain.

Charging System & Efficiency

Onboard 58.4V 18A LiFePO₄ Charger

OGRPHY includes an onboard charger, which is a big plus. It can be mounted in the cart and connects via the standard charging port. The charger supports:

• 0V recovery charging: Revives overly discharged batteries (a common issue in lithium packs)
• Fast recharging: Full charge typically in 5–6 hours
• Auto shutoff and thermal regulation

This charger also simplifies installation for users upgrading from lead-acid, eliminating the need to source a compatible charger separately.

Smart Monitoring and App Connectivity

Bluetooth BMS + Mobile App

The battery supports Bluetooth via a free app (details in manual). It displays:

• State of Charge (SOC)
• Real-time voltage
• Individual cell voltages
• Temperature
• Discharge/charge current
• Cycle count

The Bluetooth range is about 5–10 meters, enough for most golf cart uses.

LCD Touch Display

In addition to the app, OGRPHY includes a hardwired LCD monitor for live status checks on the go. Mounted near the dash, it offers real-time:

• Battery voltage
• Discharge current
• SOC (graphical and numerical)
• Alerts (temperature, imbalance, fault codes)

This dual-layer monitoring is an excellent inclusion for users who prefer redundancy or want data visible without needing a smartphone.

Installation and Compatibility

Installation Process

The installation is straightforward, especially for those replacing four 12V lead-acid batteries wired in series. OGRPHY’s pack is a single 48V unit, simplifying wiring and battery management.

Key components include:

• Battery
• Charger
• LCD display
• App setup instructions

Compatibility

Although designed for golf carts, this battery is also suited for:

• Trolling motors (up to 70lbs thrust)
• Solar bank storage
• Marine electric propulsion
• RV house batteries

The high-discharge capability and long cycle life make it a true multi-use energy solution.

Long-Term Value and Durability

Cycle Life & Warranty

With 5000+ deep cycles at 80% DOD, the OGRPHY 48V battery is designed for over 10 years of regular use. Compared to a lead-acid battery’s 500–1000 cycles, this means:

Battery Type	Cycle Life (80% DOD)	Avg. Replacement Cycle
Lead Acid	~500–1000 cycles	Every 2–3 years
OGRPHY LiFePO₄	5000+ cycles	Every 10+ years

Even accounting for a higher initial cost, the total cost of ownership over 10 years is much lower than that of lead-acid batteries.

Pros & Cons Summary

Pros	Cons
Outstanding power output (200A continuous, 1000A peak)	Higher upfront cost than lead-acid
Excellent range (30+ miles)	LCD screen requires hardwiring (not plug-and-play)
Dual monitoring (Bluetooth app + LCD)
Lightweight – reduces cart load by ~300 lbs
Onboard fast charger with recovery feature
Long cycle life and safe, certified LiFePO₄ chemistry

Final Verdict: Is It Worth It?

The OGRPHY 48V 100Ah Lithium Battery is one of the most feature-rich and powerful LiFePO₄ solutions currently available for golf carts and solar/off-grid applications. Its massive 200A BMS, smart monitoring, compact form, and inclusion of a quality charger eliminate many of the hurdles typically associated with lithium battery upgrades.

While the initial investment is higher, the longevity, power, and convenience easily offset this cost within just a few seasons of use.

Final Rating

Category	Rating (out of 5)
Build Quality	★★★★★
Performance	★★★★★
Ease of Installation	★★★★☆
Smart Features	★★★★★
Value for Money	★★★★☆
Customer Support	★★★★☆

Overall: ★★★★★ (4.8/5)
